How OLED TVs Work: The Physical Process Explained

Last updated: September 2026

🕒 6 min read

Disclosure: This article does not contain affiliate or sponsored links. SignalVetted may still reference specific products or brands for informational purposes only.

Every OLED pixel is its own tiny, layered device — built, wired, and sealed the same way regardless of brand. That single fact is the actual answer to how OLED TVs work, and this article walks through it layer by layer: what the panel is physically built from, and what happens electrically to make each pixel emit and dim on its own. For the current OLED lineup itself, our full OLED TV guide covers that separately from this process-focused explainer.

If you want the higher-level “what and why” first — why OLED looks the way it does, in plain terms — our explainer on what OLED TV technology actually is covers that. This article assumes that framing and goes one layer deeper into the physical mechanism underneath it.

How an OLED Pixel Is Actually Built

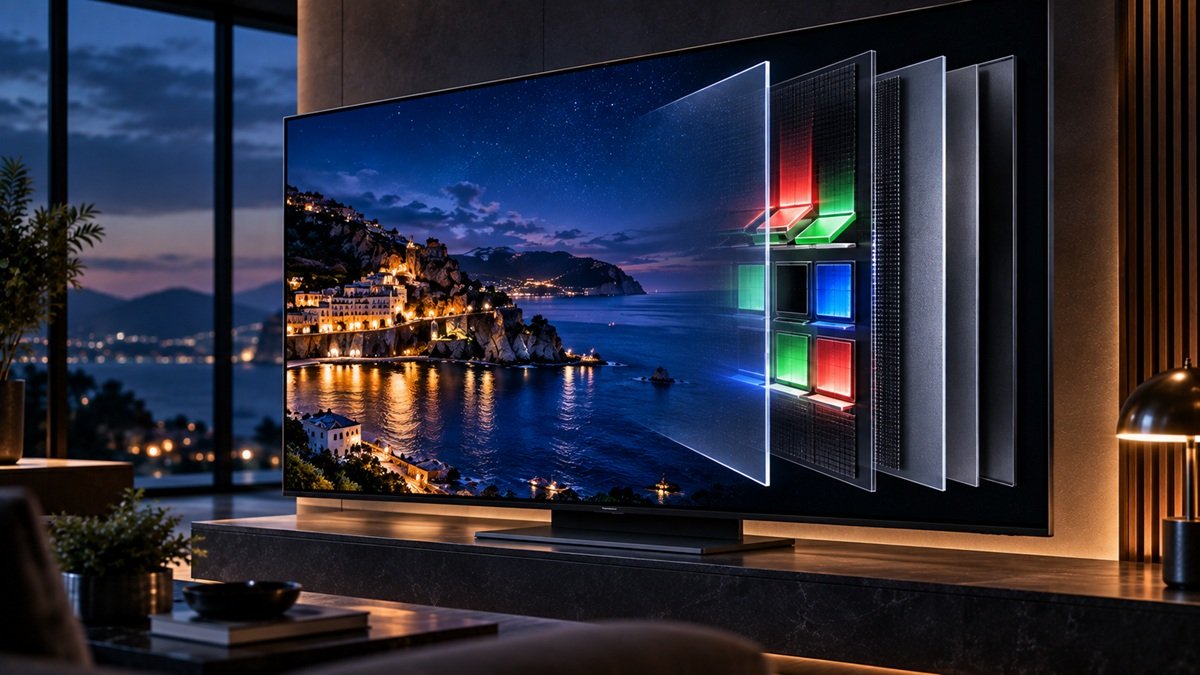

An OLED panel is a stack, not a single sheet. Working from the back of the TV toward the screen you actually look at, the structure runs through five functional layers:

Substrate. The base layer the rest of the panel is built on — a thin, stable foundation that gives the whole structure its physical support without adding meaningful thickness.

TFT backplane. A grid of thin-film transistors, one set per pixel, that acts as the panel’s electrical control layer — this is what tells each individual pixel exactly how much current to draw at any given moment.

Organic emissive layers. The layer that actually produces light — organic compounds that emit red, green, or blue light directly when current passes through them. This is the layer that makes OLED self-emissive: there’s no separate backlight shining through it, the light originates here, pixel by pixel.

Cathode. A thin conductive layer that completes the electrical circuit for each pixel, sitting above the emissive layers.

Encapsulation. A protective sealing layer on top, which shields the organic materials underneath from moisture and air — both of which would otherwise degrade them.

Every pixel on the panel repeats this exact stack, independently. That’s the physical basis for everything OLED is known for: since each pixel is its own self-contained emitting unit, it can be switched on, dimmed, or turned off completely without affecting the pixel next to it.

How It Works: Electroluminescence and Active-Matrix Addressing

How each pixel actually produces light

The organic emissive layer works through a process called electroluminescence: when the TFT backplane sends current through a pixel’s organic material, that material emits light directly, as a direct result of the electrical current — not by filtering or reflecting light from somewhere else. This is the mechanistic reason OLED can produce a true black: a pixel that receives zero current emits zero light, rather than a backlit pixel’s light being blocked but not fully eliminated.

How the panel addresses and dims each pixel independently

The TFT backplane’s per-pixel transistor grid is what makes independent control possible in the first place — it’s called active-matrix addressing because each pixel has its own dedicated switch and current-control point, rather than pixels being addressed in shared rows or columns the way some older display technologies worked. That per-pixel addressing is also the dividing line between the two major OLED panel constructions on the market today (WOLED and QD-OLED), which build on this same emissive-layer principle differently. Our explainer on OLED panel types covers that specific construction difference in depth — this article stays focused on the shared mechanism both panel types are built on.

What This Mechanism Means Depending on What You’re Trying to Understand

If you’re here because you want the short version for general knowledge, the two sections above are the complete answer: self-emissive organic layers plus per-pixel active-matrix control. That two-part answer also explains why OLED behaves consistently across the entire screen — every pixel is built from the identical stack described above, so there’s no separate mechanism quietly at work in one part of the panel versus another.

If you’re technically inclined and want to go further — comparing how different manufacturers implement the emissive layer, or how panel generations differ in addressing precision — that’s a manufacturer-specific and panel-generation-specific question this article’s scope doesn’t cover; it’s the same underlying mechanism in every case, implemented with different materials and control precision. That addressing precision is also part of why panel generations aren’t perfectly interchangeable at the engineering level, even though the underlying emissive mechanism itself remains fundamentally continuous generation to generation — the specific implementation differences between one panel and the next are a manufacturer-level detail this article doesn’t attempt to catalog.

If your actual interest is a practical concern like screen wear over time rather than the mechanism itself, the next section addresses that directly — and it’s worth knowing going in that it isn’t an unrelated afterthought: the same self-emissive property responsible for everything described above is also the direct reason screen wear is a real, structural characteristic of this display type in the first place.

Common Misconceptions or Mistakes

One common misconception is assuming that because each pixel is a fully independent emitting unit, the panel must be immune to any kind of wear over time. It isn’t. The same self-emissive, per-pixel mechanism described above is also the reason burn-in exists as a verified, measurable property of OLED panels — sustained, identical current draw at one pixel location, over a long period, wears that pixel differently than its neighbors. Based on RTINGS’ own longevity testing, burn-in remains a measured, real risk in modern OLED panels despite brightness gains — it isn’t a solved problem, and it isn’t an outdated myth left over from early OLED generations either.

Our investigation into whether OLED is worth it in 2026 weighs that risk against OLED’s picture-quality advantages directly, which is a separate question from the mechanism this article covers.

A second misconception treats the TFT backplane as if it were simply “wiring” with no real function of its own. It’s the layer doing the actual per-pixel decision-making — without it, the organic emissive layer would have no way to vary its output pixel by pixel at all.

Frequently Asked Questions

How OLED TVs work in one sentence?

Each pixel is built from its own layered stack — including an organic material that emits light directly when a dedicated per-pixel transistor sends it current — so every pixel can turn on, dim, or switch off independently.

Why don’t OLED TVs need a backlight?

Because the organic emissive layer produces light itself when current passes through it, there’s nothing to illuminate from behind — the light originates at the pixel, not from a separate light source shining through a filter layer.

What actually causes OLED pixels to dim independently?

The TFT backplane’s active-matrix addressing — a dedicated transistor per pixel controls exactly how much current that specific pixel receives, independent of every other pixel on the panel.
